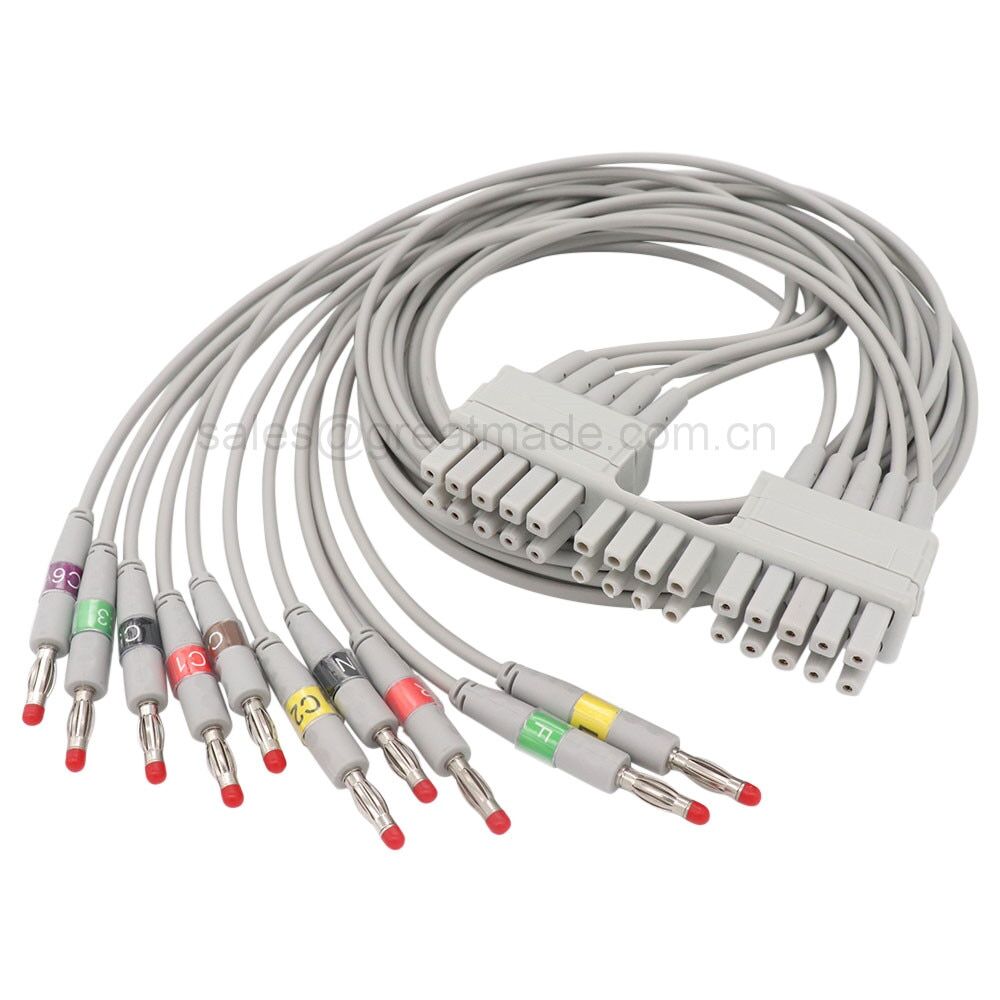

Compatible MORTARA ELI 150C 230 250C 280 350 EKG cable IEC 10-Lead leadwires 28pin socket-Banana 4.0

SKU: 2251832805509479
In Stock
$51.00
Clear
SKU: 2251832805509479 Category:

Description

  • Item Type: Household Health Monitors Accessories
  • Material: TPU
  • Commodity Quality Certification: ce
  • Model Number: EC066BI
  • Brand Name: NoEnName_Null
  • Origin: Mainland China
  • Type: leadwries set
  • Lead: 10-lead
  • Compatible with: MORTARA ELI 150C 230 250C 280 350
  • color: light grey

1.Product name

Compatible  MORTARA ELI 150C 230 250C 280 350 EKG cable IEC 10-Lead leadwires 28pin socket->Banana 4.0

2.Compatible brand

MORTARA ELI 150C 230 250C 280 350 EKG cable

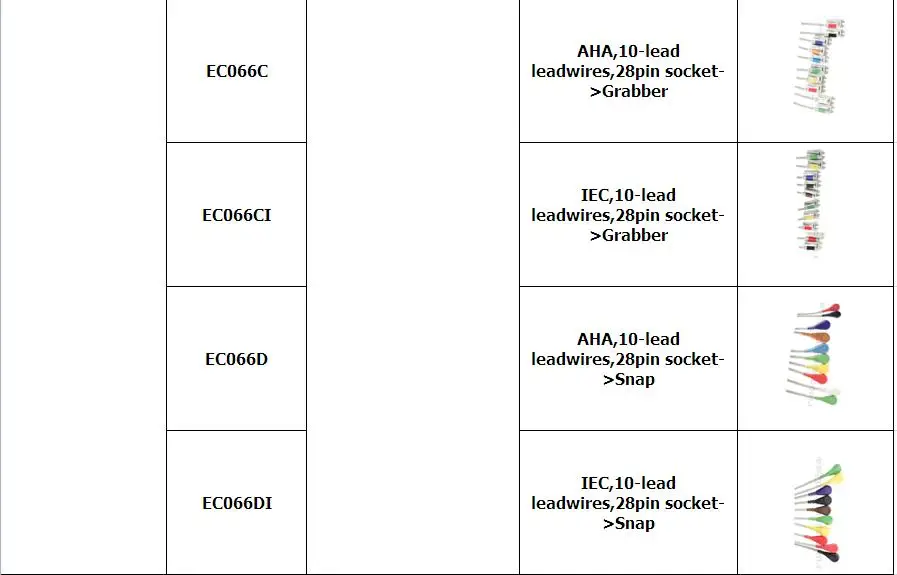

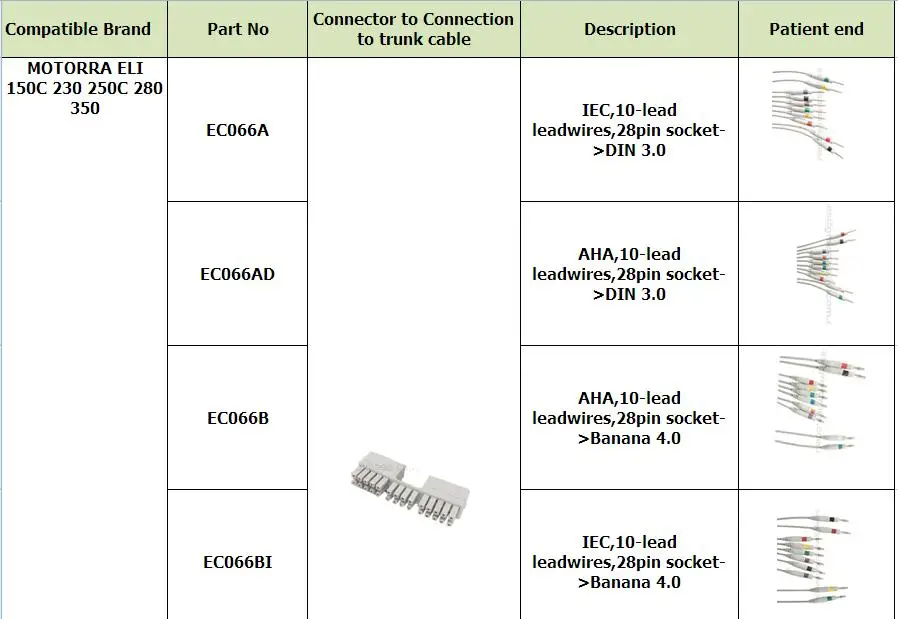

3.Product specification

4.Application

Apply for multi-parameter monitor/electrocardiogram machine/exercies treadmill or defibrillator,transit the bio-electricity signal of human-body.

Indications for Use:The patient cable and lead wires are indicated for use in the monitoring of cardiac signals for both diagnostic and monitoring purposes.Use is limited by the indications for use of the connected monitoring or diagnostic equipmend.

5.Specification and Material

             series

Cable diamiter

Leadwires Length

matirial

Color

MC

Trunk cable

5.0mm

2.7M

TPU

gray

Lead wiers

2.6mm

0.9M

TPU

gray

EC

Trunk cable

6.0mm

2M

PVC

gray

Lead wiers

3.25mm

Limb electroble leadwire length   1.2M

TPU

gray

Suction electroble leadwire length  0.8M

6.Installation and use

Connect the ECG lead wrie with the adaptive patient monitor ,and check whether the opertion is the same as the operation instructions of operation manual.

The ECG electrode of lead wire should be connected on the patient in order,the lead wire should be connected separately to avoid entwine,otherwise it may cause interference during the monitoring,such as heart rate fluctuation,waveform fluctuation etc.

The ECG electrode of lead wire can be divided into the following kinds

The connection type of electrode on the human-body as below:

AHA VS IEC comparison table

AHA function

IEC function

human body parts

White RA

Red R

Rright arm

Black LA

Yellow L

 Left arm

Red LL

Green F

 Left leg

Green RL

Black N

 Right leg

Brown V

White C

 Single chest lead

Red V1

Red C1

 Forth intercostal of breastbone right edge

Yellow V2

Yellow C2

Forth intercostal of breastbone left edge

Green V3

Green C3

 The middle point of the line between C2 and C4

Blue V4

Brown C4

 The crosspoint of midclavicular line and fifth intercostal

Orange V5

Black C5

The crosspoint of the same level of left anterior axillary line and V4

Purple V6

Purple C6

The crosspoint of the same level of left midaxillary line and V4

7. Performance and selling point

Environment requirements

Environment temperature :0℃~40℃

Relative humidity:15%~85%

Atmospheric pressure:86kpa~106kpa

Package and storage

Every ECG cable should be packaged singly,It should be stored in drafty indoor without corrosive gas. The storage conditions are below:(1)Environment temperature:-10℃~+40℃(2)Relative humidity:≤80%

Comply with EC,ISO13485

Warranty period/period of validity:

Warranty period:6 month

period of validity:N/A
